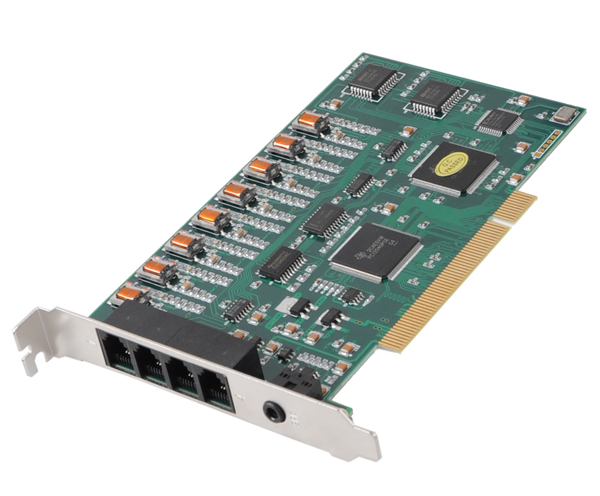

[model] AIT Euro 8 road recording card RC008
[product description] digital recording system is based on the requirements of our company in accordance with industry and other fields of communication, electric power, securities and other fields, and combined with the characteristics of its application, independently developed and developed a full digital recording equipment. It can complete the multi-channel telephone line without interference, real-time monitoring, query, playback and recording functions, and realize the effective management of the recording file, can automatically backup, delete files automatically. Widely used in futures Broker's Firm, public security, power, securities, paging, and various scheduling and other fields.
1.1 basic functions
Supports 8 phone calls simultaneously;
In the recording system, real-time monitoring of any phone calls;
In the recording system, according to the main called number, date, time, channel number and other conditions at any time to query recording;
In local area network, the telephone recording and the network real-time monitoring of the telephone call;
According to the authority to delete, backup recording file operation;
Hierarchical management based on user permissions;
Playback, playback, and continuous playback of audio recordings;
The recording interface displays the main phone number;
Automatically detect the hard disk capacity, recording files can be automatically cleaned, dump;
Support the server and client customer information records and popup inbound customer information.
With the switch relay recording function, can press the extension inquiry recording.
1.2 [performance characteristics]
Digital audio recording and playback: full digital, high fidelity sound reproduction. Large capacity hard disk
Storage and recording file, safe and reliable, read fast, convenient;
Recording and retrieval: fast searching of complex calls. Can be based on channel number, call date,
Time, the main called number, etc..
Intuitive interface: interface of each channel the phone off hook calls and text prompts, intuitive
Easy to learn and easy to use.
Time recording: according to the actual working conditions, set the system recording session;
Call monitoring: instant call listening on any word.
Parallel operation: recording and recording and call record retrieval replay at the same time.
Network query: listen to the record by the local network conditions.
Network monitoring: through the local network can monitor the status of any channel and the channel of the phone.
Safe and reliable: hierarchical password authority management, call records confidentiality strong. Industrial grade high reliability device,
Redundancy design, self failure recovery.
1.3 [sound recording mode and recording file format]
The system supports four kinds of optional recording mode: voltage control, sound control, keying.
VCO (voltage control): recording according to the change of voltage, which is on the hook for recording.
Audio control (sound control): according to the detection of the line in the audio signal to record.
Control (DTMF control): according to the detection line in whether there is a corresponding DTMF key to record.
The system supports two kinds of recording file formats:
Normal: default voice file format, the format of the file data support 2, 4, 1 times a total of three compressed format;
Wave: the wave Microsoft format, the format of the file data is only 1 times a compression format.
1.4 technical parameters
Input: 8 - 128 channels, 8 channels increase
Impedance: high resistance > 8000000000000 ohm
Signal to noise ratio: 60dB
Frequency response: 300 - 3400HZ
Collection number: 64Kbit/s per channel, voice can (1, 2, 4) times the compression
Recording time: no restrictions
Temperature: +5, +40
Humidity: 5% - 85%
1.5 hardware configuration
Host: 486/66 above
Hard disk: 1GB above
Memory: 8M or above
Monitor: VGA
Power supply: AC 180 - 265V 47 - 53HZ
Common problems
1, Eteo recording card support which system?
Answer: AIT Europe recording card: from October 1, 2013 after the card and the software can support a wide array of Windows operating system (including WIN2000, XP, Win2003, vista, win7, win8 32-bit and 64 bit operating system; temporarily does not support Apple system;
